Vishay Beyschlag/Draloric/BC Components
CAP ALUM 33000UF 20% 25V SCREW

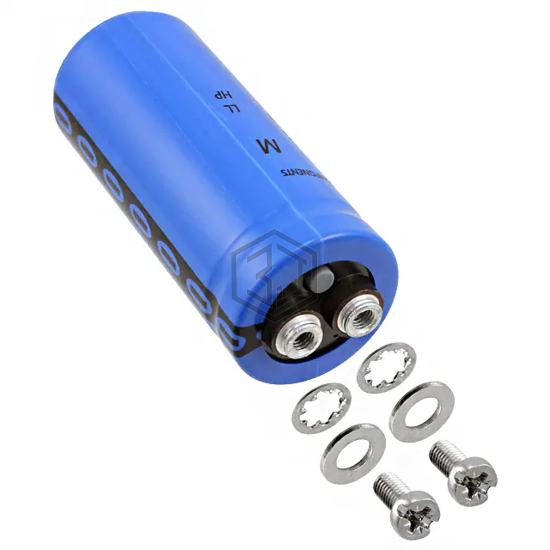

MAL210116333E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 33000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,961
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 17 mOhms |
| Lead Spacing | 0.504" (12.80mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.413" (86.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNR1E333MSEN | Nichicon | CAP ALUM 33000UF 20% 25V SCREW | 88% | View |
| LNT1J333MSEB | Nichicon | CAP ALUM 33000UF 20% 63V SCREW | 70% | View |
| LNR2A333MSE | Nichicon | CAP ALUM 33000UF 20% 100V SCREW | 68% | View |
| LNT1K333MSEB | Nichicon | CAP ALUM 33000UF 20% 80V SCREW | 68% | View |
| E36D630HPN333MC79U | United Chemi-Con | CAP ALUM 33000UF 20% 63V SCREW | 68% | View |
| 50LSQ33000M51X83 | Rubycon | CAP ALUM 33000UF 20% 50V SCREW | 64% | View |
