Vishay Beyschlag/Draloric/BC Components
CAP ALUM 680UF 20% 500V RADIAL

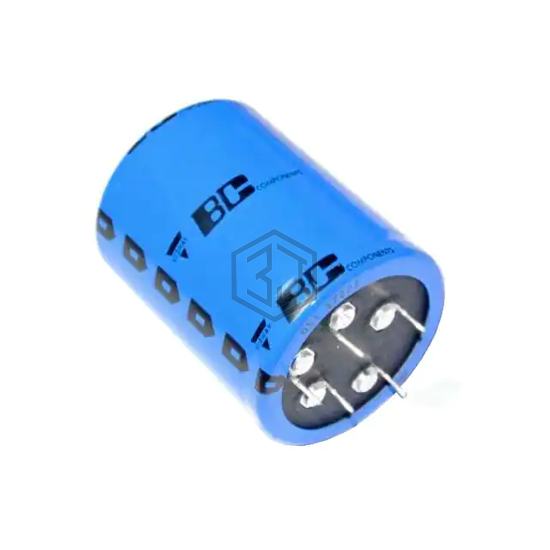

MAL209679681E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 680UF 20% 500V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - 5 Lead.
In Stock: 1,649
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 256mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.2 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 247 mOhms |
| Lead Spacing | 0.787" (20.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.953" (75.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - 5 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43521C5687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 450V RADIAL | 94% | View |
| B43513A9687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 84% | View |
| ALC80C681EF400 | KEMET | CAP ALUM 680UF 20% 400V SNAP | 72% | View |
| B43504A9687M80 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 72% | View |
| B43540G2687M80 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 58% | View |
| B43305B2687M67 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 57% | View |
Submit your RFQ for MAL209679681E3 and get a quote within 24 hours.
