Vishay Beyschlag/Draloric/BC Components
CAP ALUM 560UF 20% 420V SNAP

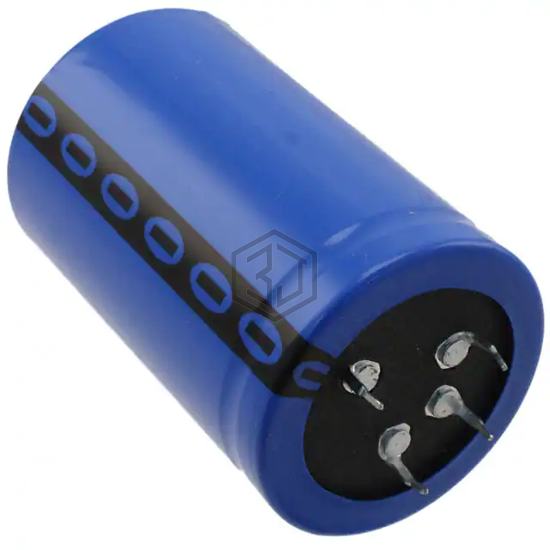

MAL209514561E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 560UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 420 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 7,159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 194mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.6 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 119 mOhms |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.362" (60.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL209617561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 450V SNAP | 92% | View |
| B43501B9567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 84% | View |
| B43501A3567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 385V SNAP | 83% | View |
| B43504A567M2 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 420V SNAP | 73% | View |
| B41858C3567M8 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 10V RADIAL | 65% | View |
| B41858C5567M8 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 25V RADIAL | 64% | View |
Submit your RFQ for MAL209514561E3 and get a quote within 24 hours.
