Vishay Beyschlag/Draloric/BC Components

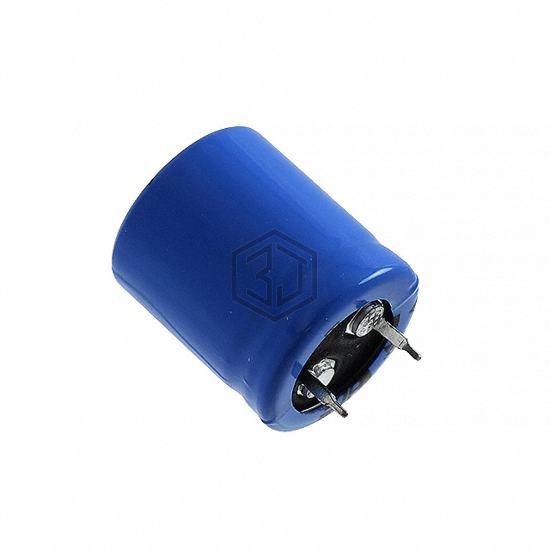

CAP ALUM 220UF 20% 200V SNAP
MAL209452221E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 220UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 460mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.04 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 300 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205953221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 250V SNAP | 92% | View |
| 250TXW220MEFR16X35 | Rubycon | CAP ALUM 220UF 20% 250V RAD TH | 89% | View |
| MAL215973221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 250V SNAP | 78% | View |
| MAL215923221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 250V SNAP | 78% | View |
| LGN2H221MELB45 | Nichicon | CAP ALUM 220UF 20% 500V SNAP | 71% | View |
| 381LX221M450K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 450V SNAP | 70% | View |
