Vishay Beyschlag/Draloric/BC Components

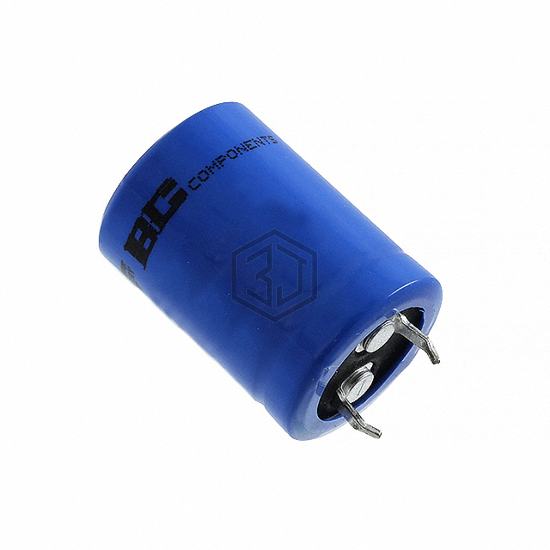

CAP ALUM 560UF 20% 420V SNAP
MAL209424561E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 560UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 8,020
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 270mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.06 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 210 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420VXS560MEFC35X50 | Rubycon | CAP ALUM 560UF 20% 420V SNAP | 100% | View |
| EKMW451VSN561MA40S | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 97% | View |
| B43504A9567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 95% | View |
| 350VXS560MEFCSN35X40 | Rubycon | CAP ALUM 560UF 20% 350V SNAP | 88% | View |
| B43508E2567M7 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 72% | View |
| B43508F2567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 71% | View |
Submit your RFQ for MAL209424561E3 and get a quote within 24 hours.
