Vishay Beyschlag/Draloric/BC Components
CAP ALUM 560UF 20% 400V SNAP

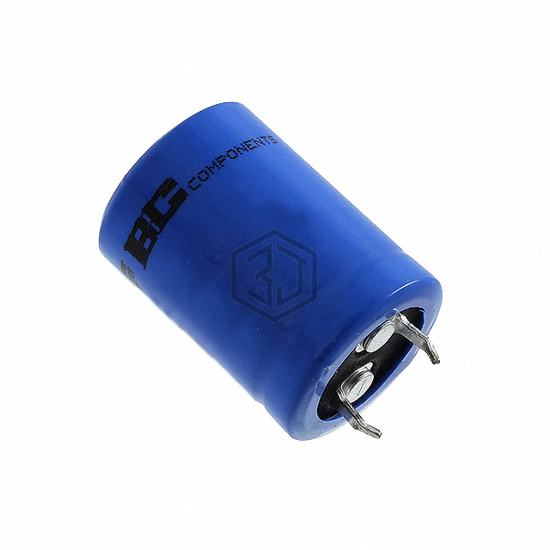

MAL209336561E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 560UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 8,259
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.48 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 230 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43601B9567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 97% | View |
| B43642B9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 95% | View |
| B43501B3567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 385V SNAP | 93% | View |
| B43305B9567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 92% | View |
| 385MXC560MEFC35X45 | Rubycon | CAP ALUM 560UF 20% 385V SNAP | 91% | View |
| B43255A4567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 350V SNAP | 88% | View |
Submit your RFQ for MAL209336561E3 and get a quote within 24 hours.
