Vishay Beyschlag/Draloric/BC Components
CAP ALUM 33000UF 20% 25V SNAP

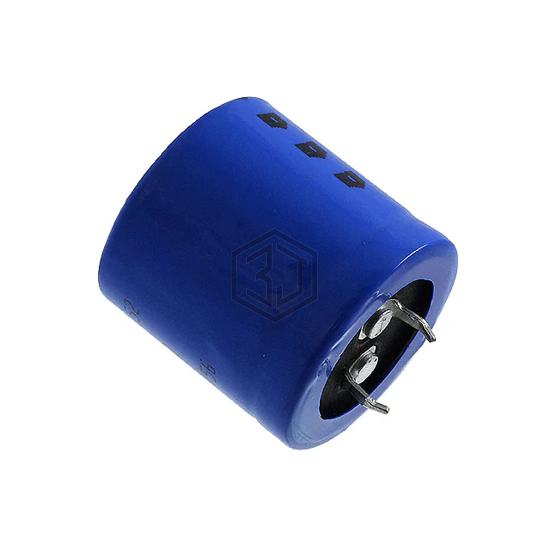

MAL205656333E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 33000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 1,597
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 39mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 4.98 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 33 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A751041 | EXXELIA Sic Safco | CAP ALUM 33000F 20% 25V RECTANGU | 100% | View |
| LGU1E333MELC | Nichicon | CAP ALUM 33000UF 20% 25V SNAP | 97% | View |
| KMH25VN333M35X50T2 | United Chemi-Con | CAP ALUM 33000UF 20% 25V SNAP | 97% | View |
| 25USC33000MEFCSN30X45 | Rubycon | CAP ALUM 33000UF 20% 25V SNAP | 90% | View |
| MALIEYN07CC533E42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 25V SNAP | 87% | View |
| 381LQ333M016K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 33000UF 20% 16V SNAP | 80% | View |
Submit your RFQ for MAL205656333E3 and get a quote within 24 hours.
