Vishay Beyschlag/Draloric/BC Components

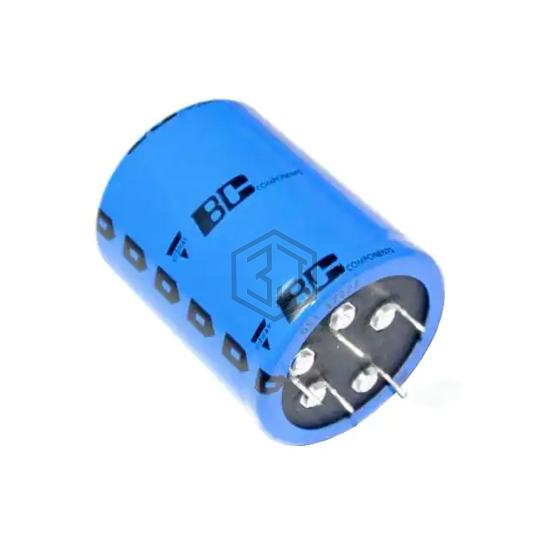

CAP ALUM 470UF 20% 400V RADIAL
MAL205356471E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 470UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - 5 Lead.
In Stock: 437
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 340mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.12 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 220 mOhms |
| Lead Spacing | 0.787" (20.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.165" (55.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - 5 Lead |
Submit your RFQ for MAL205356471E3 and get a quote within 24 hours.
