Vishay Beyschlag/Draloric/BC Components
CAP ALUM 100UF 385V RADIAL

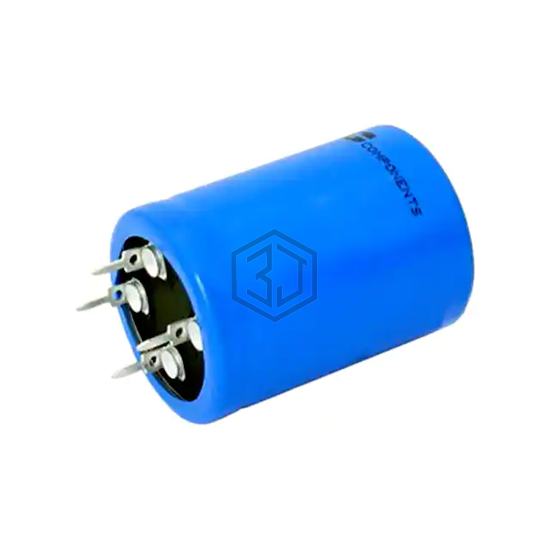

MAL205258101E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 100UF 385V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 385 V, package / case Radial, Can - 4 Lead.
In Stock: 1,565
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 385 V |
| ESR (Equivalent Series Resistance) | 1.275Ohm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 840 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 950 mOhms |
| Lead Spacing | 0.787" (20.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - 4 Lead |
Submit your RFQ for MAL205258101E3 and get a quote within 24 hours.
