Vishay Beyschlag/Draloric/BC Components

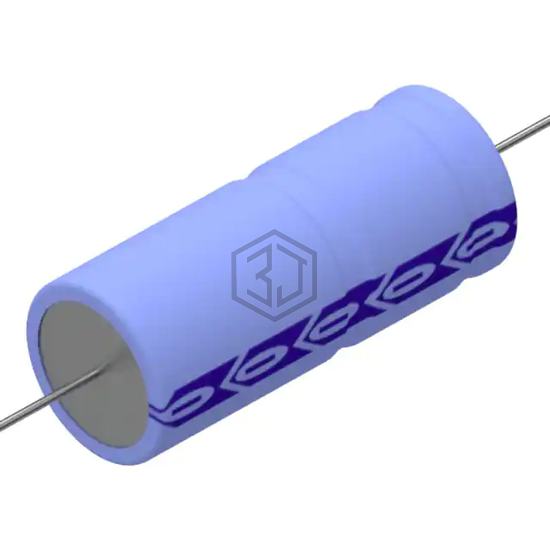

CAP ALUM 10UF 350V AXIAL
MAL204215109E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 10UF 350V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Axial, Can.
In Stock: 8,229
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 15Ohm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 10 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCYW6100MPD | Nichicon | CAP ALUM 10UF 20% 420V RADIAL | 89% | View |
| EKXJ401ELL100MJ16S | United Chemi-Con | CAP ALUM 10UF 20% 400V RADIAL | 89% | View |
| 860241175001 | Würth Elektronik | CAP ALUM 10UF 20% 250V RADIAL | 84% | View |
| UVC2G100MPD1TD | Nichicon | CAP ALUM 10UF 20% 400V RADIAL | 81% | View |
| UAQ2G100MHD | Nichicon | CAP ALUM 10UF 20% 400V RADIAL | 81% | View |
| UCS2D100MPD1TD | Nichicon | CAP ALUM 10UF 20% 200V RADIAL | 75% | View |
Submit your RFQ for MAL204215109E3 and get a quote within 24 hours.
