Vishay Beyschlag/Draloric/BC Components

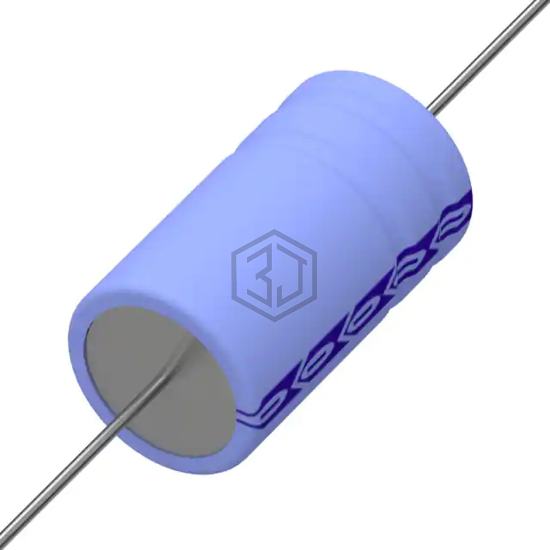

CAP ALUM 330UF 16V AXIAL
MAL203135331E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 330UF 16V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Axial, Can.
In Stock: 3,888
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 780mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 410 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia x 0.709" L (10.00mm x 18.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 337KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 16V RADIAL | 90% | View |
| UHE1C331MPD | Nichicon | CAP ALUM 330UF 20% 16V RADIAL | 81% | View |
| ELXY250ELL331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 67% | View |
| ELXV250ETD331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 60% | View |
| EGXE500ELL331MK20S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 54% | View |
| 860010775019 | Würth Elektronik | CAP ALUM 330UF 20% 63V RADIAL | 51% | View |
