Vishay Beyschlag/Draloric/BC Components

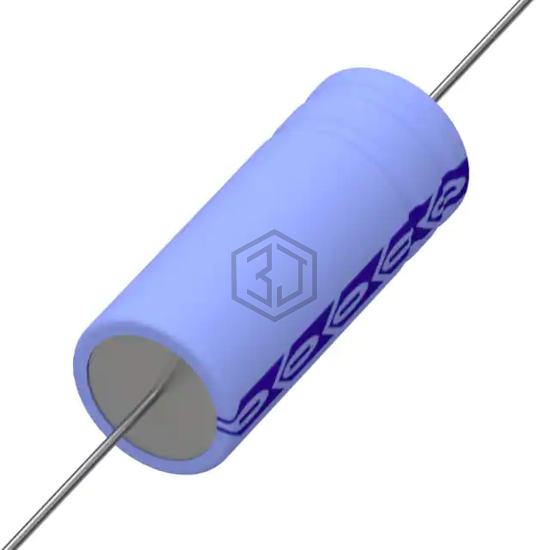

CAP ALUM 220UF 40V AXIAL
MAL203127221E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 220UF 40V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 40 V, package / case Axial, Can.
In Stock: 1,265
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 800mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 430 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 320 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia x 0.984" L (10.00mm x 25.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
Submit your RFQ for MAL203127221E3 and get a quote within 24 hours.
