Vishay Beyschlag/Draloric/BC Components

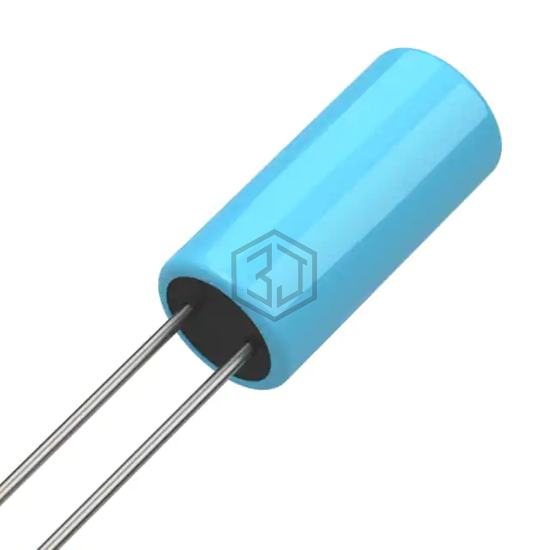

CAP ALUM 47UF 20% 10V RADIAL
MAL201354479E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 47UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,099
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 75 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 2.8 Ohms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1A470H | Panasonic Electronic Components | CAP ALUM 47UF 20% 10V RADIAL | 95% | View |
| UST1A470MDD1TP | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 92% | View |
| UVR1A470MDD1TD | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 91% | View |
| UST1E470MDD1TE | Nichicon | CAP ALUM 47UF 20% 25V RADIAL | 70% | View |
| UMA1V470MDD | Nichicon | CAP ALUM 47UF 20% 35V RADIAL | 69% | View |
| UMP0J470MDD | Nichicon | CAP ALUM 47UF 20% 6.3V RADIAL | 64% | View |
Submit your RFQ for MAL201354479E3 and get a quote within 24 hours.
