Vishay Beyschlag/Draloric/BC Components
RES ARRAY 2 RES 20K OHM 0606

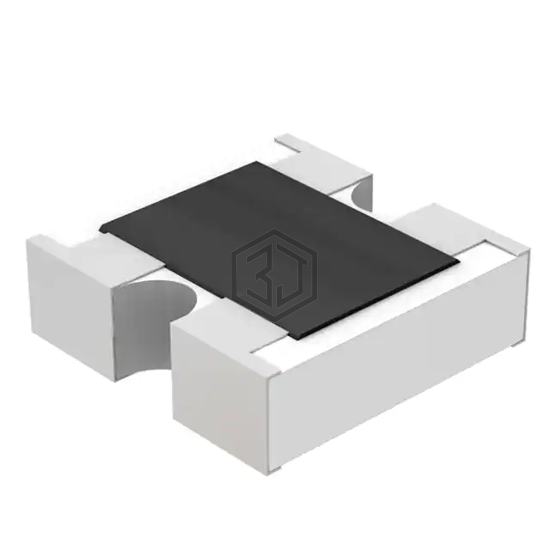

ACASN2002E2002P1AT is a Resistor Networks, Arrays manufactured by Vishay Beyschlag/Draloric/BC Components. RES ARRAY 2 RES 20K OHM 0606. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case 0606, Convex, size / dimension 0.063" L x 0.059" W (1.60mm x 1.50mm).
In Stock: 1,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 20k |
| Tolerance | ±0.25% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±7.5ppm/°C |
| Number of Pins | 4 |
| Power Per Element | 125mW |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Automotive AEC-Q200, Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |
| Package / Case | 0606, Convex |
| Supplier Device Package | 0606 |
| Size / Dimension | 0.063" L x 0.059" W (1.60mm x 1.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
Submit your RFQ for ACASN2002E2002P1AT and get a quote within 24 hours.
