Vishay Beyschlag/Draloric/BC Components

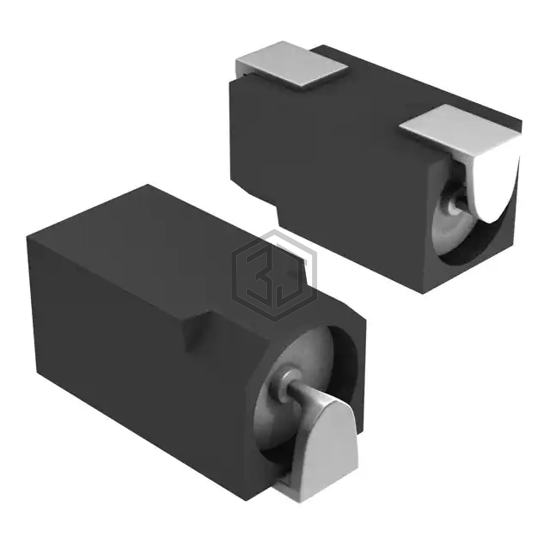

CAP ALUM 3.3UF 20% 25V SMD
2222 085 66338 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 3.3UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Nonstandard SMD.
In Stock: 3,166
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 87Ohm |
| Lifetime @ Temp. | 1500 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 14.4 mA @ 10 kHz |
| Impedance | 27 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.346" L x 0.146" W (8.80mm x 3.70mm) |
| Height - Seated (Max) | 0.154" (3.90mm) |
| Surface Mount Land Size | 0.346" L x 0.146" W (8.80mm x 3.70mm) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
2222 085 66338 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BMVK250ADA3R3MD60G | United Chemi-Con | CAP ALUM 3.3UF 20% 25V SMD | 100% | View |
| MVKBP25VC3R3MD60TP | United Chemi-Con | CAP ALUM 3.3UF 20% 25V SMD | 100% | View |
| EEE-HP1E3R3R | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 25V SMD | 89% | View |
| UWX1V3R3MCL2GB | Nichicon | CAP ALUM 3.3UF 20% 35V SMD | 85% | View |
| EEE-1VS3R3SR | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 35V SMD | 81% | View |
| UUL1H3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 59% | View |
Submit your RFQ for 2222 085 66338 and get a quote within 24 hours.
