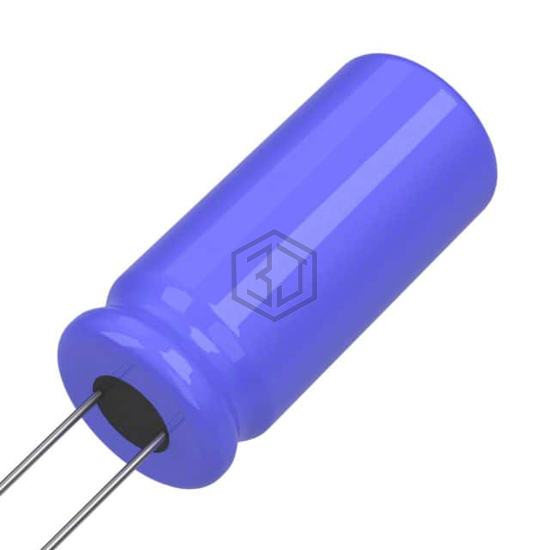

CAP ALUM 470UF 20% 25V RADIAL
678D477M025DM3DE3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,648
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 160mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 679 mA @ 120 Hz |
| Ripple Current @ High Frequency | 970 mA @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.161" (29.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D477H025DS3R | Vishay Sprague | CAP ALUM 470UF 25V RADIAL | 100% | View |
| ELXV250ERC471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 97% | View |
| MAL215056471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 97% | View |
| EEU-HD1E471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 73% | View |
| MAL216035471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 71% | View |
| MAL224638471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 68% | View |
