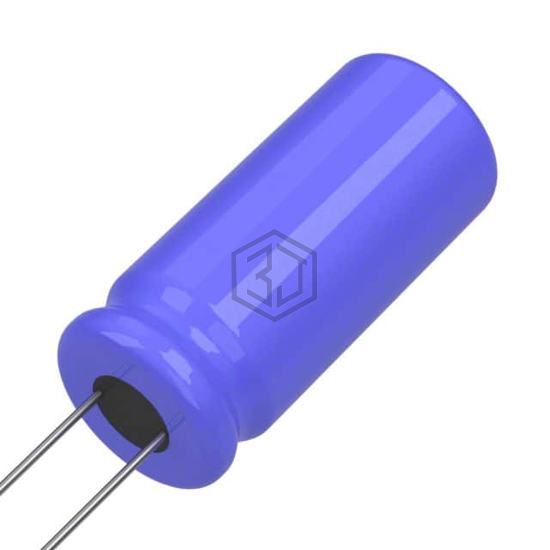

CAP ALUM 470UF 20% 25V RADIAL
678D477M025DM3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,457
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 160mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 679 mA @ 120 Hz |
| Ripple Current @ High Frequency | 970 mA @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.161" (29.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK471M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 25V RADIAL | 100% | View |
| B41890A5477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 25V RADIAL | 93% | View |
| MAL214051471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 67% | View |
| ELXZ160ELL471MH15D | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 66% | View |
| 477RZM050M1815 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 50V RADIAL | 66% | View |
| RXK471M1HBK-1325S | SURGE | CAP ALUM 470UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for 678D477M025DM3D and get a quote within 24 hours.
