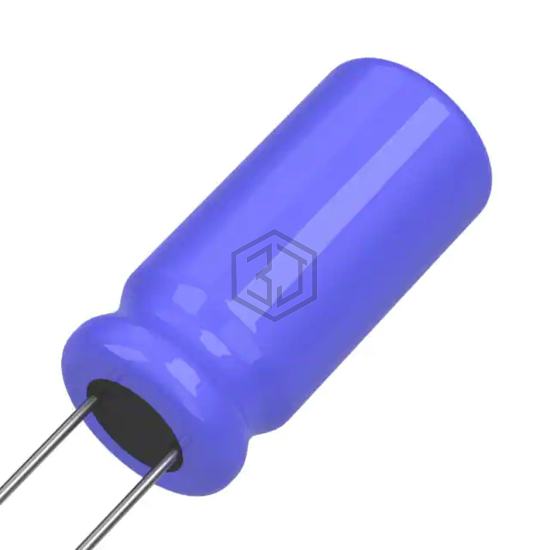

CAP ALUM 470UF 20% 16V RADIAL
678D477M016CG5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,090
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 250mOhm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Impedance | 94 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1C471MPD1TD | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 100% | View |
| UPM1C471MPD1TA | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 93% | View |
| UBW1A471MPD | Nichicon | CAP ALUM 470UF 20% 10V RADIAL | 79% | View |
| EEU-FC1E471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 66% | View |
| EKMQ630ELL471MK20S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 65% | View |
| EKMG100ELL471MHB5D | United Chemi-Con | CAP ALUM 470UF 20% 10V RADIAL | 55% | View |
Submit your RFQ for 678D477M016CG5D and get a quote within 24 hours.
