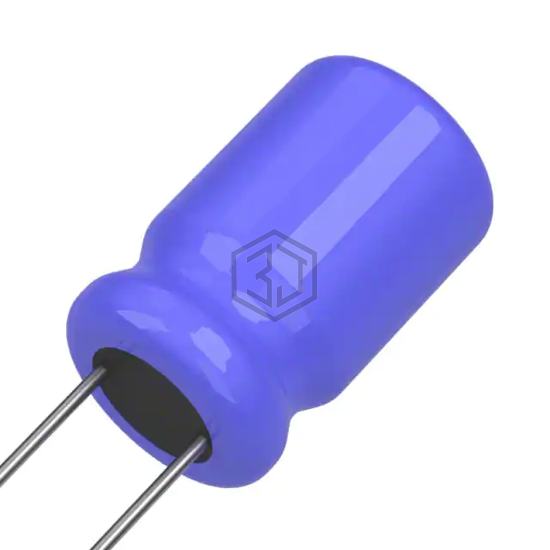

CAP ALUM 47UF 20% 50V RADIAL
678D476M050CC3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 47UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,649
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 1.25Ohm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 196 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 275 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1H470MGD1TD | Nichicon | CAP ALUM 47UF 20% 50V RADIAL | 90% | View |
| 672D476H040CD5D | Vishay Sprague | CAP ALUM 47UF 40V RADIAL | 86% | View |
| EG1H470MNN6311U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 85% | View |
| B41896W8476M | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 63V RADIAL | 83% | View |
| UVZ1J470MEH | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 78% | View |
| RF1K470MNN0812 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 54% | View |
Submit your RFQ for 678D476M050CC3D and get a quote within 24 hours.
