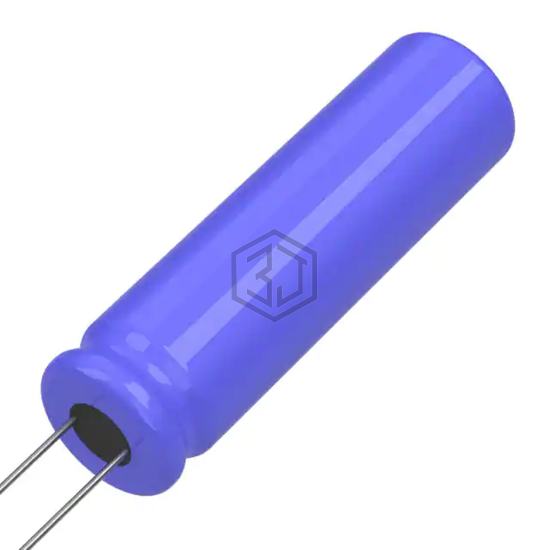

CAP ALUM 3300UF 20% 6.3V RADIAL
678D338M6R3DS3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 3300UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,470
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 67mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.169 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.67 A @ 100 kHz |
| Impedance | 32 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.791" (45.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK332M0JBK-1325S | Surge | CAP ALUM 6.3V POLAR | 91% | View |
| UPA0J332MHD1TO | Nichicon | CAP ALUM 3300UF 20% 6.3V RADIAL | 90% | View |
| RXJ332M0JBK-1325S | Surge | CAP ALUM 6.3V POLAR | 85% | View |
| EEU-FK0J332L | Panasonic Electronic Components | CAP ALUM 3300UF 20% 6.3V RAD TH | 84% | View |
| MAL211815332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V AXIAL | 57% | View |
| 860160481038 | Würth Elektronik | CAP ALUM 3300UF 20% 25V RADIAL | 55% | View |
Submit your RFQ for 678D338M6R3DS3D and get a quote within 24 hours.
