CAP ALUM 3300UF 20% 10V RADIAL

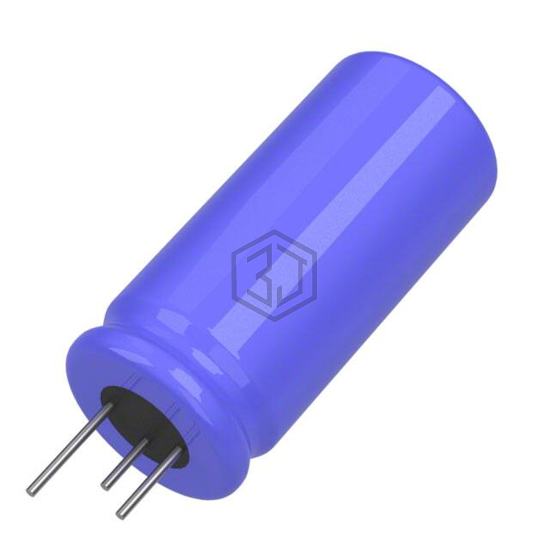

678D338M010EN5O is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 3300UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 85mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.092 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.56 A @ 100 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213634332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V RADIAL | 94% | View |
| KMG10VB332M12X20LL | United Chemi-Con | CAP ALUM 3300UF 20% 10V RADIAL | 89% | View |
| UKT1C332MHD | Nichicon | CAP ALUM 3300UF 20% 16V RADIAL | 81% | View |
| UPA1A332MHD | Nichicon | CAP ALUM 3300UF 20% 10V RADIAL | 73% | View |
| 338RZM016M1625 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 16V RADIAL | 57% | View |
| 338RZM6R3M1320 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 6.3V RADIAL | 53% | View |
Submit your RFQ for 678D338M010EN5O and get a quote within 24 hours.
