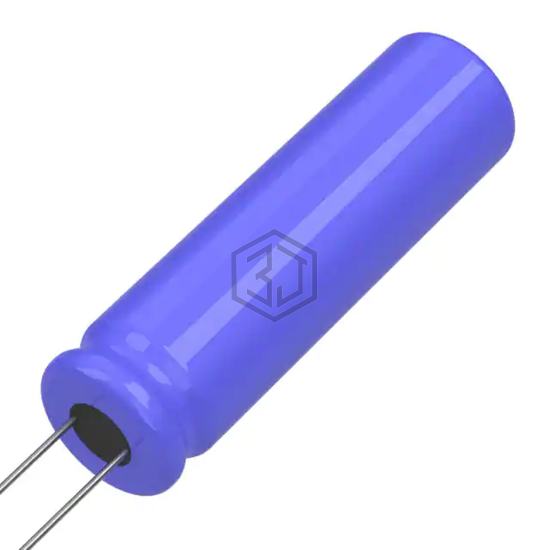

CAP ALUM 330UF 20% 63V RADIAL
678D337M063DS3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 330UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,292
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 130mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.057 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.51 A @ 100 kHz |
| Impedance | 40 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.791" (45.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D337M063EK5D | Vishay Sprague | CAP ALUM 330UF 20% 63V RADIAL | 100% | View |
| B41896C6337M008 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 50V RADIAL | 82% | View |
| B41888C6337M008 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 50V RADIAL | 75% | View |
| ELXZ500ELL331MJ25S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 72% | View |
| MAL215090183E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 100V RADIAL | 69% | View |
| B41888C7337M008 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 35V RADIAL | 69% | View |
Submit your RFQ for 678D337M063DS3D and get a quote within 24 hours.
