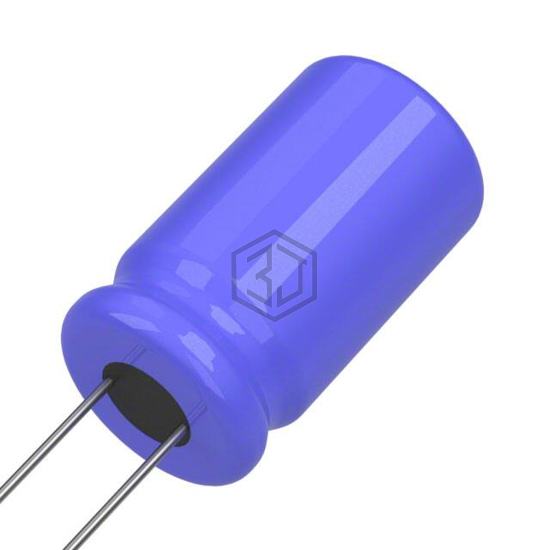

CAP ALUM 330UF 20% 25V RADIAL
678D337M025DG3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,194
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 270mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 553 mA @ 120 Hz |
| Ripple Current @ High Frequency | 790 mA @ 100 kHz |
| Impedance | 76 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELZA350ELL331MJC5S | United Chemi-Con | CAP ALUM 330UF 20% 35V RADIAL | 82% | View |
| 63PX330MEFC10X20 | Rubycon | CAP ALUM 330UF 20% 63V RADIAL | 74% | View |
| 860160574023 | Würth Elektronik | CAP ALUM 330UF 20% 35V RADIAL | 71% | View |
| MAL214631331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 67% | View |
| ECA-1HHG331C | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 66% | View |
| UBW1H331MPD | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 62% | View |
Submit your RFQ for 678D337M025DG3D and get a quote within 24 hours.
