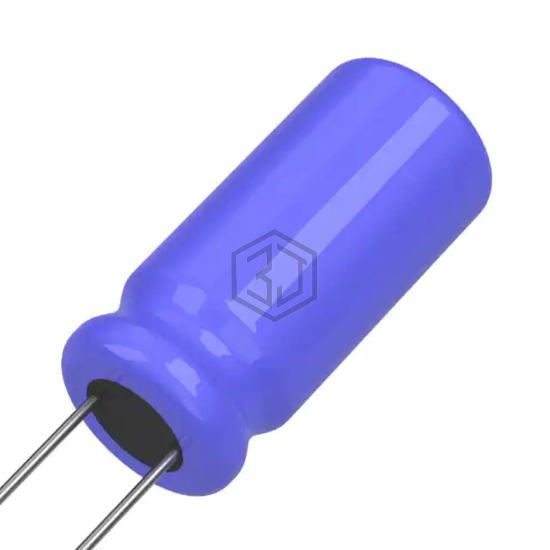

CAP ALUM 330UF 20% 20V RADIAL
678D337M020CG3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 330UF 20% 20V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 9,742
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 270mOhm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 427 mA @ 120 Hz |
| Ripple Current @ High Frequency | 610 mA @ 100 kHz |
| Impedance | 98 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C5337M8 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 25V RADIAL | 86% | View |
| MAL214055331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 80% | View |
| UBX1V331MHL1TN | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 75% | View |
| UBX1H331MHL1TO | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 71% | View |
| 35WXA330MEFCT810X9 | Rubycon | CAP ALUM 330UF 20% 35V RADIAL | 71% | View |
| 35NXA330MEFC12.5X20 | Rubycon | CAP ALUM 330UF 20% 35V RADIAL | 70% | View |
Submit your RFQ for 678D337M020CG3D and get a quote within 24 hours.
