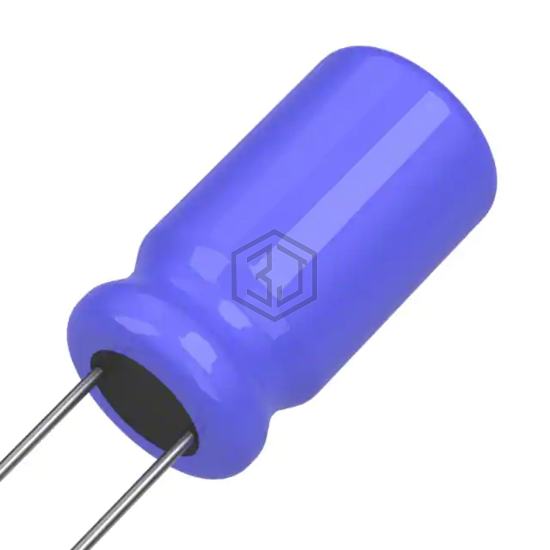

CAP ALUM 330UF 20% 16V RADIAL
678D337M016CD3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,881
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 370mOhm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 364 mA @ 120 Hz |
| Ripple Current @ High Frequency | 520 mA @ 100 kHz |
| Impedance | 136 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215085331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 97% | View |
| EV337M016A9MAAKPLP | KEMET | EV337M016A9MAAKPLP | 92% | View |
| EV337M025A9MAAKPLP | KEMET | ALUM ELECTRO CAP | 80% | View |
| UBX1E331MHL | Nichicon | CAP ALUM 330UF 20% 25V RADIAL | 78% | View |
| EKMQ500ELL331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 72% | View |
| ELXV100ELL331MH12D | United Chemi-Con | CAP ALUM 330UF 20% 10V RADIAL | 72% | View |
Submit your RFQ for 678D337M016CD3D and get a quote within 24 hours.
