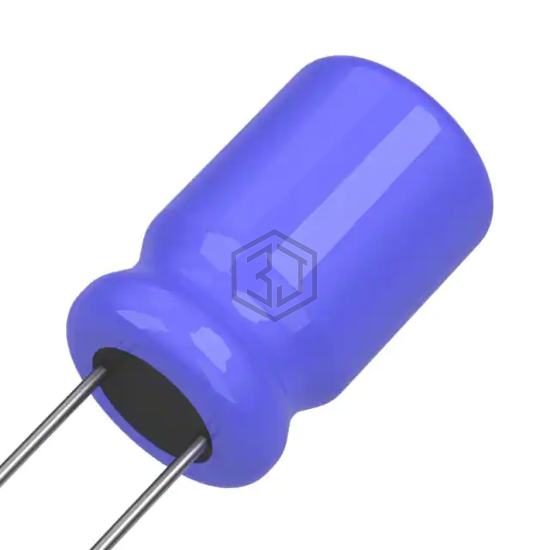

CAP ALUM 33UF 20% 63V RADIAL
678D336M063CC3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 33UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,014
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 1.6Ohm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 189 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 100 kHz |
| Impedance | 288 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D336M063CC4D | Vishay Sprague | CAP ALUM 33UF 20% 63V RADIAL | 100% | View |
| EEU-FC1H330B | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 82% | View |
| UPJ1H330MED1TD | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 75% | View |
| EV336M025A9GAAKPLP | KEMET | ALUM ELECTRO CAP | 70% | View |
| EKMG500EC3330ME11D | United Chemi-Con | CAP ALUM 33UF 20% 50V RADIAL | 63% | View |
| RF2A330MP508B5ERU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 54% | View |
Submit your RFQ for 678D336M063CC3D and get a quote within 24 hours.
