CAP ALUM 2200UF 20% 10V RADIAL

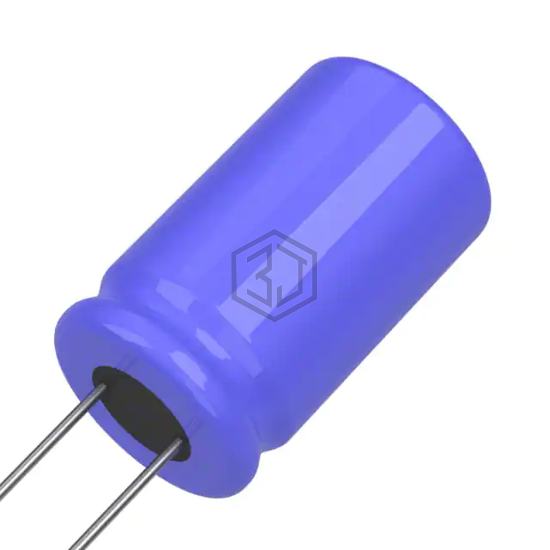

678D228M010EK5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 2200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,739
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 115mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.064 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.52 A @ 100 kHz |
| Impedance | 46 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.098" (27.90mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 10V RADIAL | 91% | View |
| RXW222M0JBK-1320S | Surge | CAP ALUM 6.3V POLAR | 83% | View |
| UPS1C222MHD1TO | Nichicon | CAP ALUM 2200UF 20% 16V RADIAL | 80% | View |
| MAL211914222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 10V AXIAL | 79% | View |
| EKMG250ELL222MK25S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 72% | View |
| MAL214033222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 6.3V RADIAL | 53% | View |
Submit your RFQ for 678D228M010EK5D and get a quote within 24 hours.
