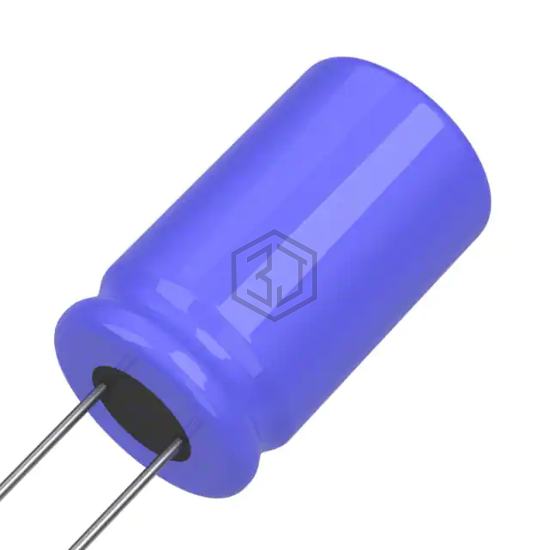

CAP ALUM 2200UF 20% 10V RADIAL
678D228M010EK4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 2200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 6,235
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 115mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.064 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.52 A @ 100 kHz |
| Impedance | 46 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.032" (26.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213634222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V RADIAL | 92% | View |
| MAL213664222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V RADIAL | 92% | View |
| UPA0J222MPD3 | Nichicon | CAP ALUM 2200UF 20% 6.3V RADIAL | 76% | View |
| URZ1A222MHD1TO | Nichicon | CAP ALUM 2200UF 20% 10V RADIAL | 74% | View |
| RJA222M1HBK-1636S | SURGE | CAP ALUM 2200UF 20% 50V RADIAL | 61% | View |
| MAL214056222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 60% | View |
Submit your RFQ for 678D228M010EK4D and get a quote within 24 hours.
