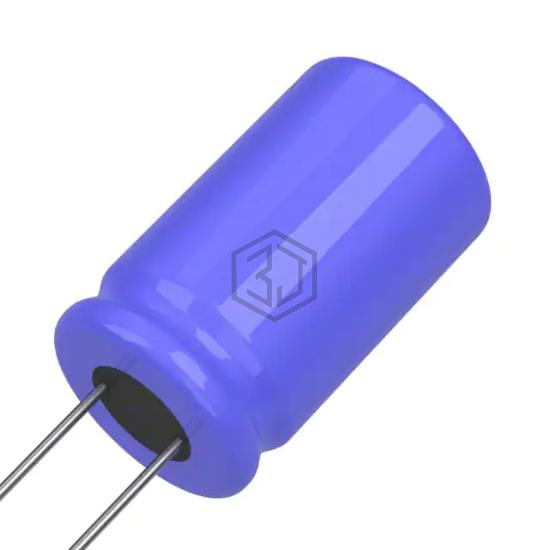

CAP ALUM 220UF 20% 63V RADIAL
678D227M063EK3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 220UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,898
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 170mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 861 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 54 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.098" (27.90mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1H221MPD | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 86% | View |
| UBX1K221MHL | Nichicon | CAP ALUM 220UF 20% 80V RADIAL | 80% | View |
| B41858C8227M | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 63V RADIAL | 75% | View |
| MAL216061221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V RADIAL | 64% | View |
| ELXV630ELL221MK20S | United Chemi-Con | CAP ALUM 220UF 20% 63V RADIAL | 61% | View |
| EY1V221MP30812 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 55% | View |
Submit your RFQ for 678D227M063EK3D and get a quote within 24 hours.
