CAP ALUM 220UF 20% 25V RADIAL

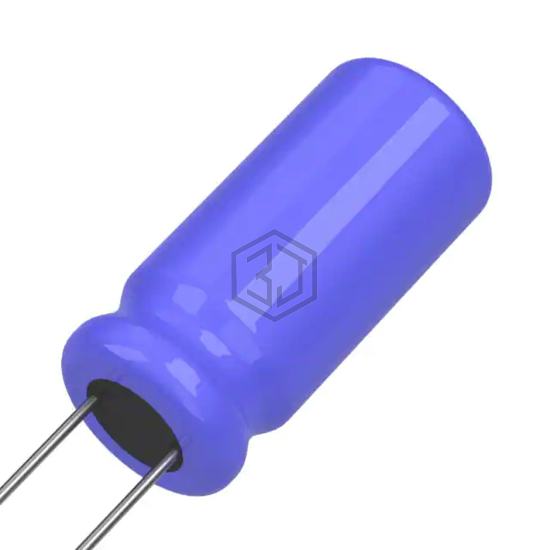

678D227M025CG5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 220UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,444
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 413 mA @ 120 Hz |
| Ripple Current @ High Frequency | 590 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK221M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 25V RADIAL | 100% | View |
| ELXY350ETD221MH20S | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 84% | View |
| MAL215085221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 79% | View |
| 672D227H040EK5C | Vishay Sprague | CAP ALUM 220UF 40V RADIAL | 70% | View |
| ECA-1JHG221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 63V RADIAL | 70% | View |
| EKMG500EMC221MJC5S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 65% | View |
Submit your RFQ for 678D227M025CG5D and get a quote within 24 hours.
