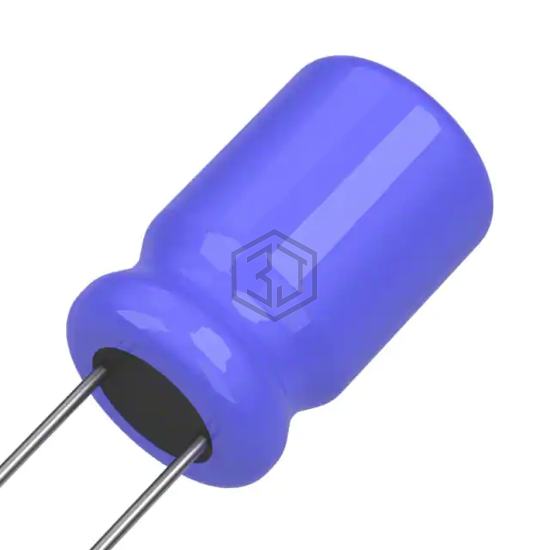

CAP ALUM 220UF 20% 16V RADIAL
678D227M016CC4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 220UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,847
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 585mOhm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 400 mA @ 100 kHz |
| Impedance | 217 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.563" (14.30mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211925221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 16V AXIAL | 83% | View |
| EKMG500ETD221MJC5S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 74% | View |
| EKMG500EC3221MJC5S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 74% | View |
| UBW1A221MPD | Nichicon | CAP ALUM 220UF 20% 10V RADIAL | 72% | View |
| EJ1E221MLT0812UR | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 57% | View |
| ELXV630ELL221MK20S | United Chemi-Con | CAP ALUM 220UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for 678D227M016CC4D and get a quote within 24 hours.
