CAP ALUM 1000UF 20% 40V RADIAL

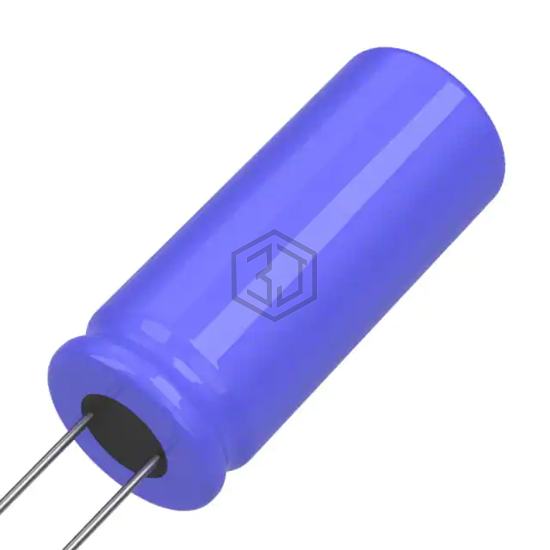

678D108M040ER4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 1000UF 20% 40V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can.
In Stock: 195
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.232 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.76 A @ 100 kHz |
| Impedance | 35 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215090103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 89% | View |
| EY1H102MNN1820 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 81% | View |
| RXK102M1EBK-1320S | SURGE | CAP ALUM 1000UF 20% 25V RADIAL | 79% | View |
| MAL214666102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 78% | View |
| EEU-FC1C102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 72% | View |
| B41689A7108Q001 | EPCOS - TDK Electronics | CAP ALUM 1000UF 40V AXIAL | 68% | View |
