CAP ALUM 100UF 20% 40V RADIAL

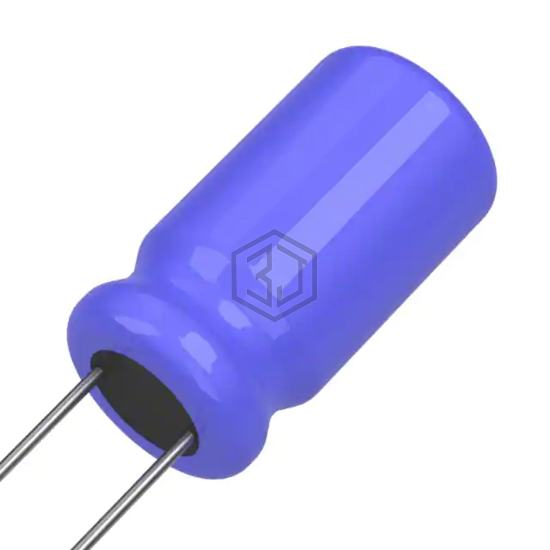

678D107M040CD3DE3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 100UF 20% 40V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can.
In Stock: 1,306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 580mOhm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 266 mA @ 120 Hz |
| Ripple Current @ High Frequency | 380 mA @ 100 kHz |
| Impedance | 165 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D107H050DT5C | Vishay Sprague | CAP ALUM 100UF 50V RADIAL | 86% | View |
| ELXZ350ELL101MF15D | United Chemi-Con | CAP ALUM 100UF 20% 35V RADIAL | 84% | View |
| MAL211937101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 40V AXIAL | 82% | View |
| URZ2A101MHD1TO | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 78% | View |
| ECA-1JHG101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V RADIAL | 77% | View |
| 100PX100MEFC10X16 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 75% | View |
Submit your RFQ for 678D107M040CD3DE3 and get a quote within 24 hours.
