CAP ALUM 680UF 20V RADIAL

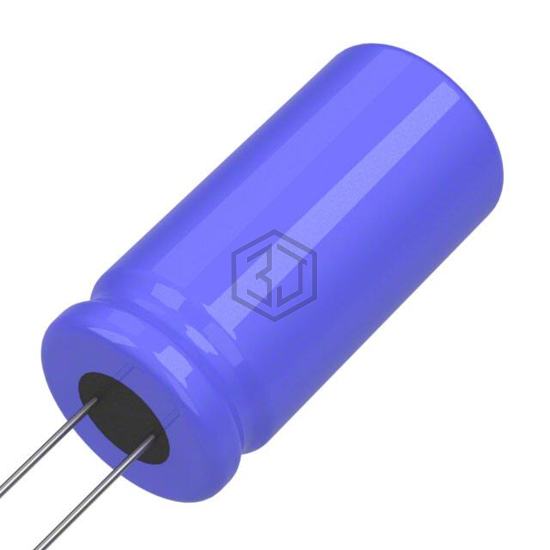

672D687H020ET5C is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 680UF 20V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 2,912
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | - |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214666681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V RADIAL | 86% | View |
| MAL216055681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 86% | View |
| EJ1C681MP51016U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 86% | View |
| MAL216050681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 64% | View |
| URY1V681MHD | Nichicon | CAP ALUM 680UF 20% 35V RADIAL | 64% | View |
| 860080274013 | Würth Elektronik | CAP ALUM 680UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for 672D687H020ET5C and get a quote within 24 hours.
