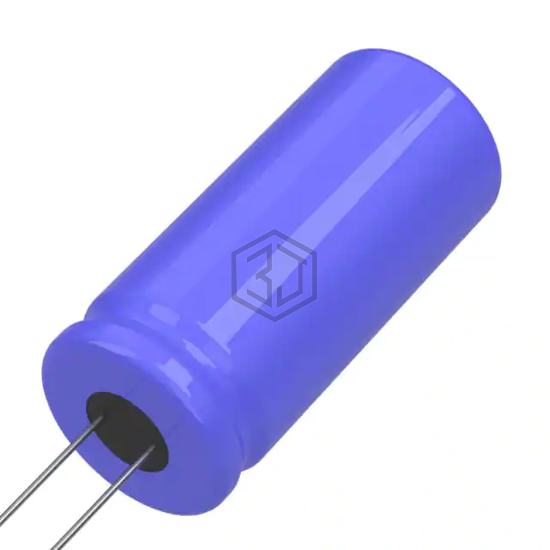

CAP ALUM 470UF 50V RADIAL
672D477F050FV5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,345
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 250mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.68 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz |
| Impedance | 95 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.693" (43.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK471M1HBK-1030S | SURGE | CAP ALUM 470UF 20% 50V RADIAL | 77% | View |
| MAL214631471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 76% | View |
| B41693B0477Q001 | EPCOS - TDK Electronics | CAP ALUM 470UF 75V AXIAL | 58% | View |
| MAL215030471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 56% | View |
| MAL215060471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 56% | View |
| 672D477H012DM2J | Vishay Sprague | CAP ALUM 470UF 12V RADIAL | 56% | View |
