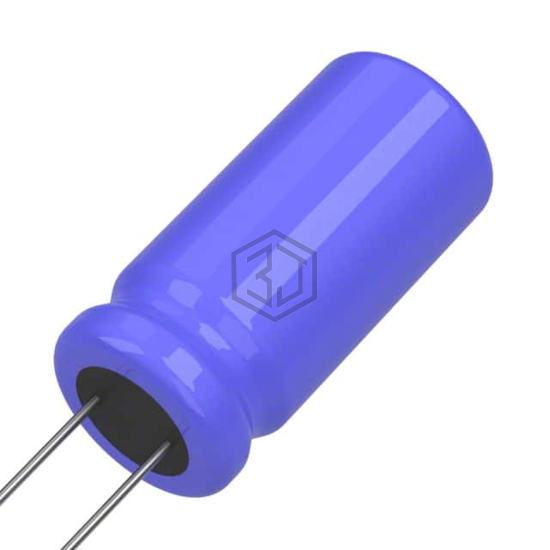

CAP ALUM 33UF 100V RADIAL
672D336F100DM4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 33UF 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 2.55Ohm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 396 mA @ 120 Hz |
| Ripple Current @ High Frequency | 720 mA @ 100 kHz |
| Impedance | 390 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.102" (28.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D336H100EK5C | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 100% | View |
| 672D336H100EK5D | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 100% | View |
| 600D336F075DE5 | Vishay Sprague | CAP ALUM 33UF 75V AXIAL | 82% | View |
| B41858C9336M000 | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 100V RADIAL | 75% | View |
| UBW2A330MPD | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 72% | View |
| MAL213659339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V RADIAL | 71% | View |
Submit your RFQ for 672D336F100DM4D and get a quote within 24 hours.
