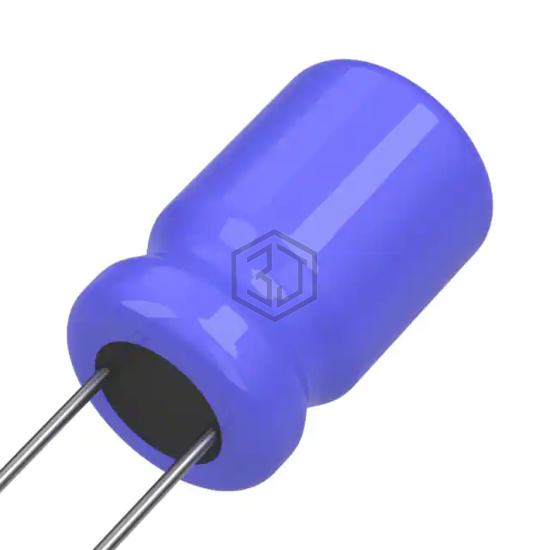

CAP ALUM 150UF 6.3V RADIAL
672D157F6R3CD5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 150UF 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,023
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 1.1Ohm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D157H7R5CD5D | Vishay Sprague | CAP ALUM 150UF 7.5V RADIAL | 89% | View |
| UPW1H151MPD1TD | Nichicon | CAP ALUM 150UF 20% 50V RADIAL | 71% | View |
| MAL213650151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 35V RADIAL | 68% | View |
| EEU-FC1A151B | Panasonic Electronic Components | CAP ALUM 150UF 20% 10V RADIAL | 58% | View |
| 600D157G030DG4 | Vishay Sprague | CAP ALUM 150UF 30V AXIAL | 56% | View |
| ELXZ250ELL151MF15D | United Chemi-Con | CAP ALUM 150UF 20% 25V RADIAL | 55% | View |
Submit your RFQ for 672D157F6R3CD5D and get a quote within 24 hours.
