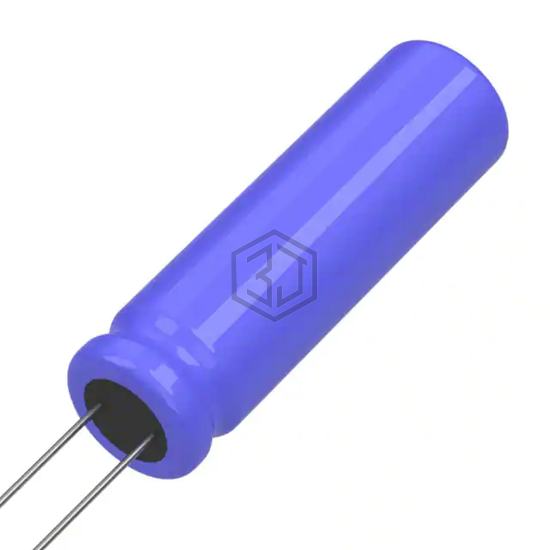

CAP ALUM 1000UF 12V RADIAL
672D108F012DS5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 1000UF 12V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 12 V, package / case Radial, Can.
In Stock: 9,103
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 12 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.645 A @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.791" (45.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D108G010GE2 | Vishay Sprague | CAP ALUM 1000UF 10V AXIAL | 88% | View |
| SEK102M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 10V RADIAL | 88% | View |
| UPA1C102MPD6TD | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 82% | View |
| UPA1A102MPD1TD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 57% | View |
| B41858C7108M8 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 35V RADIAL | 54% | View |
| ELXZ160ELL102MJ20S | United Chemi-Con | CAP ALUM 1000UF 20% 16V RADIAL | 51% | View |
