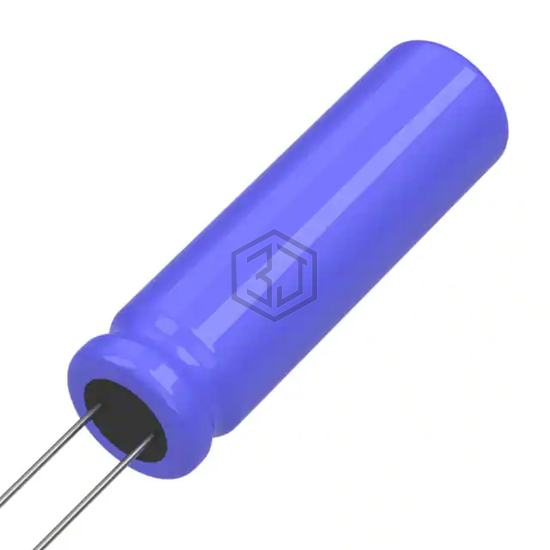

CAP ALUM 1000UF 12V RADIAL
672D108F012DS4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 1000UF 12V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 12 V, package / case Radial, Can.
In Stock: 5,767
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 12 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.645 A @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.720" (43.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213635102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 68% | View |
| RXK102M1CBK-1025S | SURGE | CAP ALUM 1000UF 20% 16V RADIAL | 60% | View |
| 672D108H6R3EK5C | Vishay Sprague | CAP ALUM 1000UF 6.3V RADIAL | 59% | View |
| MAL214064102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 10V RADIAL | 55% | View |
| MAL211925102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 16V AXIAL | 55% | View |
| MAL213691105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 54% | View |
Submit your RFQ for 672D108F012DS4D and get a quote within 24 hours.
