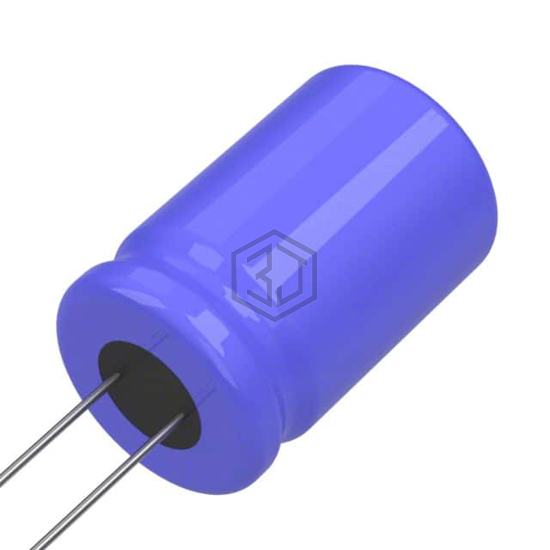

CAP ALUM 100UF 60V RADIAL
672D107F060EK5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 100UF 60V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 60 V, package / case Radial, Can.
In Stock: 393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 60 V |
| ESR (Equivalent Series Resistance) | 900mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | 240 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.098" (27.90mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D107H050DT5J | Vishay Sprague | CAP ALUM 100UF 50V RADIAL | 88% | View |
| MAL214638101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V RADIAL | 78% | View |
| B41858C6107M8 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 50V RADIAL | 71% | View |
| UBW2A101MPD | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 67% | View |
| EEU-FC1J101B | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V RADIAL | 63% | View |
| EEU-FC2A101B | Panasonic Electronic Components | CAP ALUM 100UF 20% 100V RADIAL | 57% | View |
Submit your RFQ for 672D107F060EK5D and get a quote within 24 hours.
