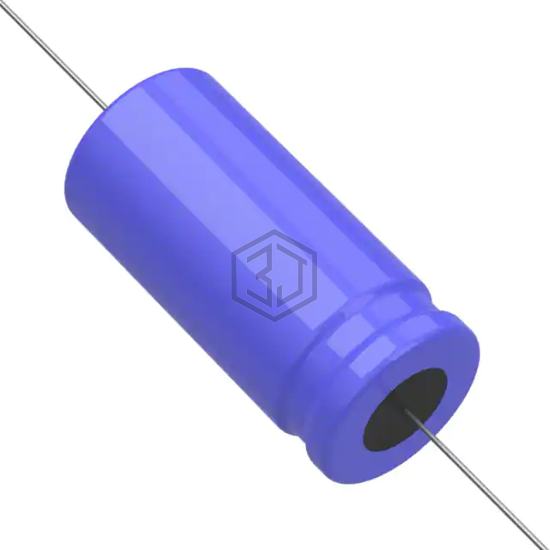

CAP ALUM 680UF 100V AXIAL
601D687F100HP1 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 680UF 100V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Axial, Can.
In Stock: 2,362
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 155mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.072 A @ 1 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.875" Dia x 2.625" L (22.22mm x 66.68mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 687KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 680UF 20% 100V RADIAL | 78% | View |
| 860080780026 | Würth Elektronik | CAP ALUM 680UF 20% 63V RADIAL | 76% | View |
| B41042A8687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 63V RADIAL | 66% | View |
| ELXV800ELL681MM30S | United Chemi-Con | CAP ALUM 680UF 20% 80V RADIAL | 57% | View |
| MAL224638681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 56% | View |
| 757D687M035DK3D | Vishay Sprague | CAP ALUM 680UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for 601D687F100HP1 and get a quote within 24 hours.
