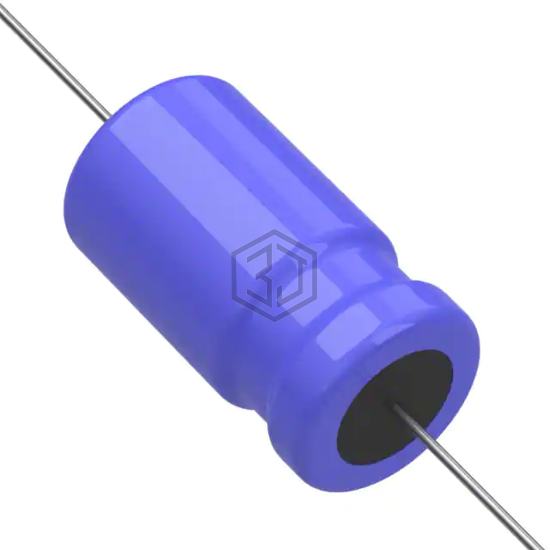

CAP ALUM 220UF 63V AXIAL
601D227F063FE1 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 220UF 63V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Axial, Can.
In Stock: 9,231
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 563mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 780 mA @ 120 Hz |
| Ripple Current @ High Frequency | 936 mA @ 1 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.625" Dia x 1.125" L (15.88mm x 28.58mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214651221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V RADIAL | 89% | View |
| ELXZ630ELL221ML15S | United Chemi-Con | CAP ALUM 220UF 20% 63V RADIAL | 88% | View |
| EEU-FC1H221S | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V RADIAL | 87% | View |
| ELXZ500ELL221MJ20S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 81% | View |
| MAL215031221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V RADIAL | 73% | View |
| ELXY350ETD221MH20D | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 59% | View |
Submit your RFQ for 601D227F063FE1 and get a quote within 24 hours.
