CAP ALUM 22UF 20% 63V RADIAL

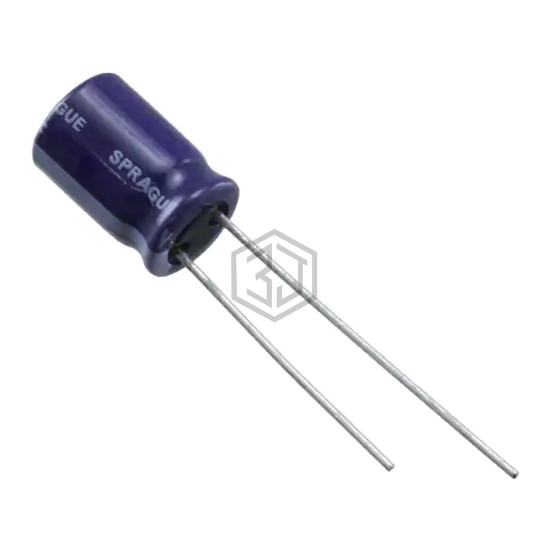

515D226M063AA6AE3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 22UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,858
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211658229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V RADIAL | 99% | View |
| UKW1J220MDD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 93% | View |
| UFW1H220MDD1TA | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 84% | View |
| UBW1J220MPD1TA | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 73% | View |
| VHT22M35 | NTE Electronics, Inc | CAP ALUM 22UF 20% 35V RADIAL | 62% | View |
| EKRG500ETD220MF07D | United Chemi-Con | CAP ALUM 22UF 20% 50V RADIAL | 57% | View |
Submit your RFQ for 515D226M063AA6AE3 and get a quote within 24 hours.
