CAP ALUM 22UF 20% 25V RADIAL

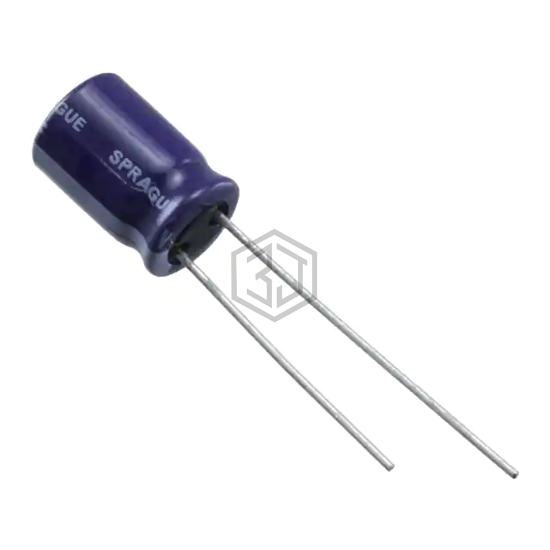

515D226M025AW6AE3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,658
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 51 mA @ 120 Hz |
| Ripple Current @ High Frequency | 102 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
515D226M025AW6AE3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXF22MEFCTA5X11 | Rubycon | CAP ALUM 22UF 20% 25V RADIAL | 100% | View |
| EKMG160ELL220ME11D | United Chemi-Con | CAP ALUM 22UF 20% 16V RADIAL | 84% | View |
| UTS1H220MDD1TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 71% | View |
| MAL201351229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 50V RADIAL | 59% | View |
| 500D226M100DC2A | Vishay Sprague | CAP ALUM 22UF 20% 100V AXIAL | 56% | View |
| NEV22M50BA | NTE Electronics, Inc | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for 515D226M025AW6AE3 and get a quote within 24 hours.
