CAP ALUM 5600UF 50V SCREW

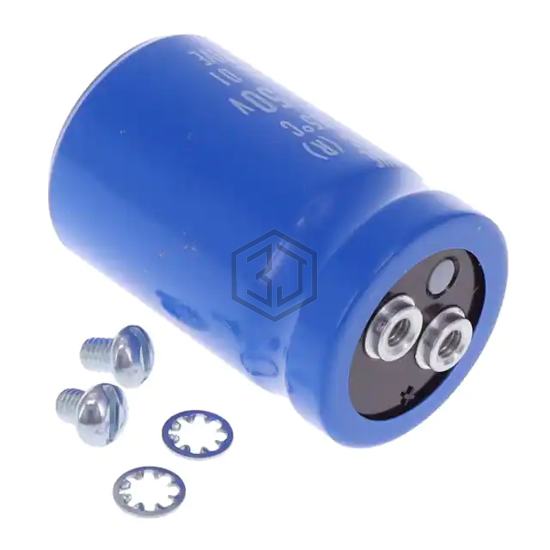

36DY562F050AA2A is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 5600UF 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 65
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 40mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.775 A @ 1 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.453" Dia (36.90mm) |
| Height - Seated (Max) | 2.252" (57.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
