CAP ALUM 18000UF 75V SCREW

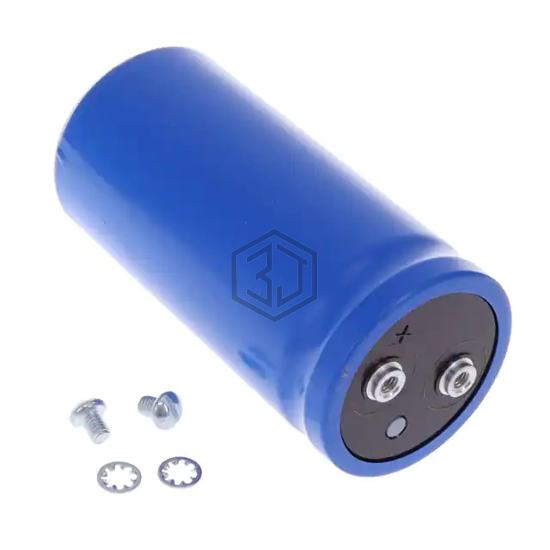

36DY183F075BC2A is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 18000UF 75V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 75 V, package / case Radial, Can - Screw Terminals.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 18000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 75 V |
| ESR (Equivalent Series Resistance) | 13.7mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 16.675 A @ 1 kHz |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.079" Dia (52.80mm) |
| Height - Seated (Max) | 4.252" (108.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for 36DY183F075BC2A and get a quote within 24 hours.
