CAP ALUM 7400UF 200V SCREW

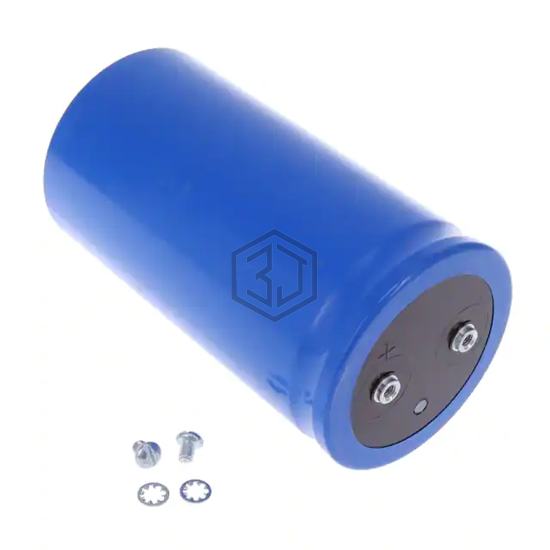

36DX742F200DF2A is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 7400UF 200V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Screw Terminals.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 7400 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.079" Dia (78.20mm) |
| Height - Seated (Max) | 5.752" (146.10mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for 36DX742F200DF2A and get a quote within 24 hours.
