N-CHANNEL 300-V (D-S) 175C MOSFE

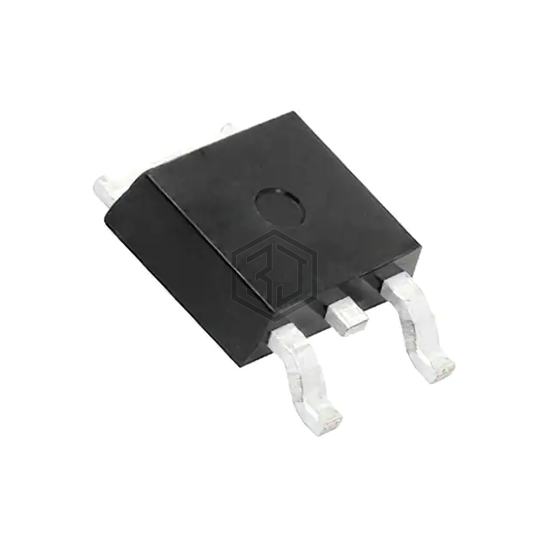

SQD10N30-330H_4GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 300-V (D-S) 175C MOSFE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.
In Stock: 4,678
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 300 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 330mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 4.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2190 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 107W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252AA |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Submit your RFQ for SQD10N30-330H_4GE3 and get a quote within 24 hours.
