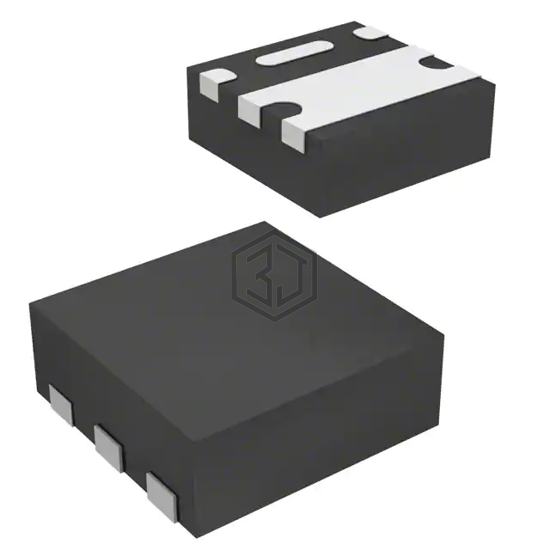

MOSFET N-CH 30V 2.25A PPAK SC70
SQA470EEJ-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 30V 2.25A PPAK SC70. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SC-70-6.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 2.25A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 56mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.6V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.2 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 453 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 13.6W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SC-70-6 |
| Package / Case | PowerPAK® SC-70-6 |
Submit your RFQ for SQA470EEJ-T1_GE3 and get a quote within 24 hours.
