MOSFET N-CH 100V 12.5/45.3A PPAK

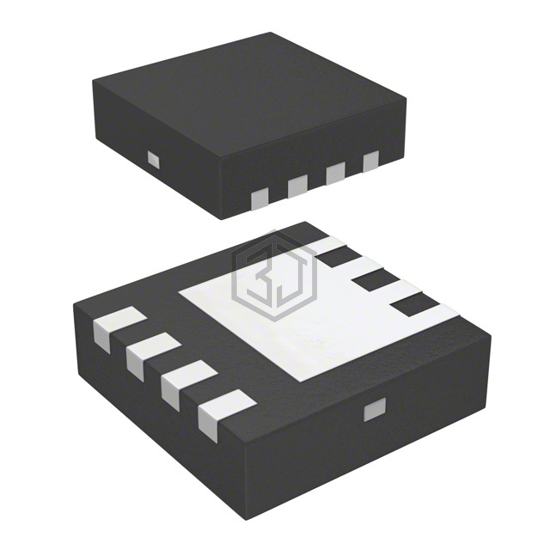

SISS46DN-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 100V 12.5/45.3A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® 1212-8S.
In Stock: 2,934
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Ta), 45.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7.5V, 10V |
| Rds On (Max) @ Id, Vgs | 12.8mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 3.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2140 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Ta), 65.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8S |
| Package / Case | PowerPAK® 1212-8S |
Submit your RFQ for SISS46DN-T1-GE3 and get a quote within 24 hours.
